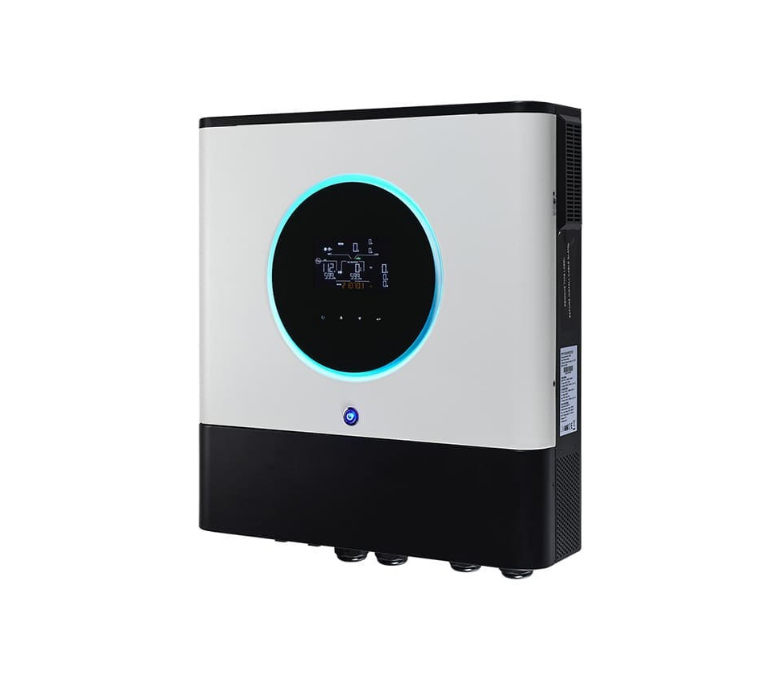

Voltronic Axpert MAX II 8KW Inverter

MODEL

Axpert MAX II 8000

RATED POWER

8000VA/8000W

PARALLEL CAPABILITY

YES, 6 units

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

16000VA

Efficiency (Peak)

93%

Transfer Time

15 ms(For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

No Load Power Consumption

< 75W

DC Voltage

12 VDC ± 5%, 100W

BATTERY

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

66 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type

MPPT

Maximum PV Array Power

8000W (4000W x 2)

MPPT Range @ Operating Voltage

90 ~ 450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maxmum Solar Charge Current

150A

Maximum AC Charge Current

120A

Maximum Charge Current

150A

PHYSICAL

Dimension, D x W x H (mm)

158.4 x 503.6 x 530.8

Net Weight (kgs)

20

Communication Interface

USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C

STANDARD

Compliance Safety

CE
